Spline Gauges are the best Inspection Tools to check internal as well as external Splined Profiles for Index and Profile errors. The use of Spline Gauges ensures the quickest process for acceptance of Splined components in mass production.

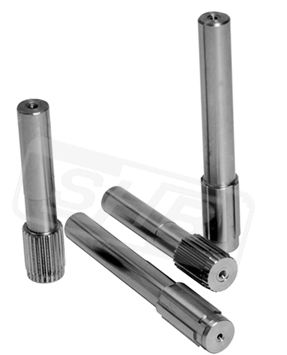

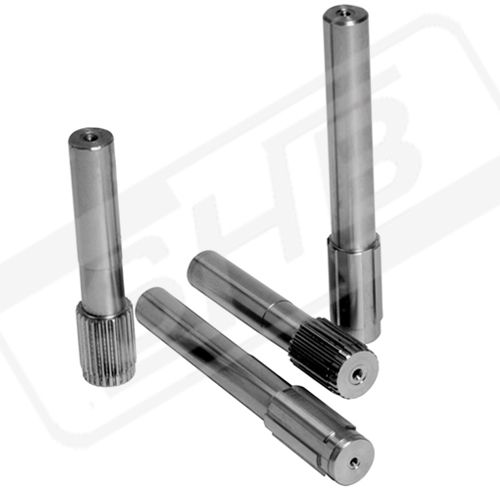

SHB manufacture Spline Plug Gauges with requisite close accuracies.

Spine Plug Gauges can be manufactured and supplied in following profiles:

• Straight Splines
• Involute Splines
• Serrations
• Trapezoidal Splines
